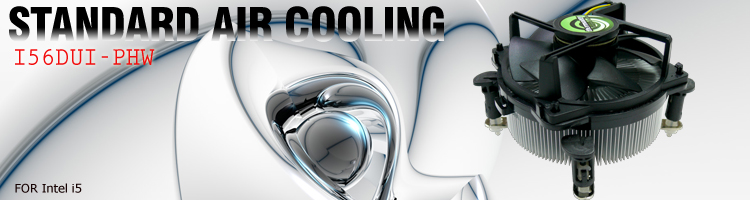

Heavy-duty heatsink with dense fins designed to deliver performance and power for the Intel Socket 1156/1155 processors.




Description Socket Type Intel LGA1156 Socket
Cooler dimension 124 * 124 * 61.5 mm
Fan Spec Dimension 90 * 90 * 25 mm ( R )
Bearing type Two Ball bearing/ one ball one sleeve bearing/ EBR bearing
Rotational Speed 1200~3600 rpm ±300rpm (PWM)
Acoustic level 19~38 dB(A)
Life 60000 hrs/ 50000 hrs/ 40,000 hrs
Airflow 14~43 CFM
Voltage DC 12V
Thermal  Interface  Material High performance thermal grease
Application Intel® Core™ i5 Processor all series
Remark According to customer’s system thermal and acoustic level requirement, ThermalFly can depends on request to make customization model.Push pin and screw spring fastener available.
