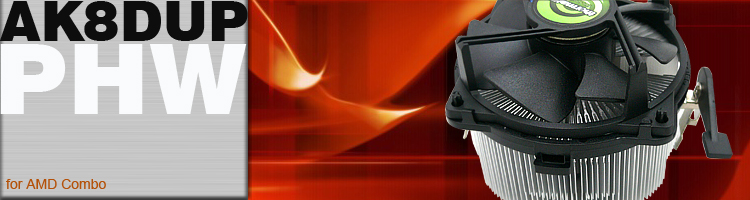

Premium quality copper core with dense aluminum fin design achieves a high cooling performance at minimum air flow.





Description Socket Type AMD 754/ 939/ 940/ AM2/ AM2+/AM3/ AM3+/ FM1/ Socket F compatible
Cooler dimension 111 * 111 * 75 mm
Fan Spec Dimension 90 * 90 * 25 mm (R)
Bearing type Two Ball bearing/ one ball one sleeve bearing/ EBR bearing
Rotational Speed 1200~3600 rpm ± 300rpm (PWM)
Acoustic level 19~38 dB(A)
Life 60000 hrs/ 50000 hrs/ 40,000 hrs
Airflow 14~43 CFM
Voltage DC 12V
Thermal  Interface  Material High performance thermal grease
Application

AMD Phenom™ X4 Quad-Core (125W)

AMD Phenom™ II X4

AMD Phenom™ X3 Triple-Core

AMD Phenom™ II X3

AMD Business Class- AMD Phenom™ X4 Quad-Core Processors

AMD Business Class- AMD Phenom™ X3 Triple-Core Processors

AMD Athlon™

AMD Athlon™ FX

AMD Athlon™ X2 Dual-Core

AMD Business Class- AMD Athlon™ X2 Dual-Core Processors

AMD Business Class- AMD Athlon™ Processors

AMD Sempron™

Remark According to customer’s system thermal and acoustic level requirement, ThermalFly can depends on request to make customization model.
