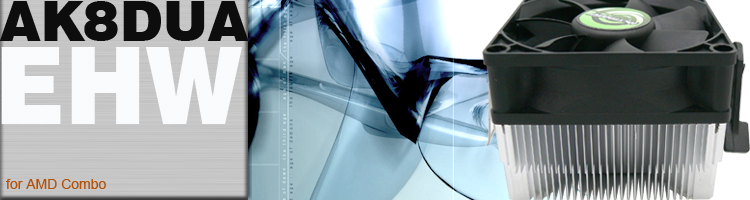

High thermal conduction and low noise design





Perfect ratio aluminum extrusion heatsink for better heat dissipation. Silent solution that special reversed fan reducing the noise for AMD Phenom™ X4 Quad-Core (95W) processor.



Description Socket Type AMD 754/ 939/ 940/ AM2/ AM2+/AM3/ AM3+/ FM1/ Socket F compatible
Cooler dimension 80.6 * 80.6 * 61.5 mm
Fan Spec Dimension 80 * 80 * 25 mm
Bearing type Two Ball bearing/ one ball one sleeve bearing/ EBR bearing
Rotational Speed 900~3600 rpm ±10% (PWM)
Acoustic level 20~38 dB(A)
Life 60000 hrs/ 50000 hrs/ 40,000 hrs
Airflow 13.8~58.7 CFM
Voltage DC 12V
Thermal  Interface  Material High performance thermal grease

AMD Phenom™ X4 Quad-Core (95W)

AMD Phenom™ II X4 (95W)

AMD Phenom™ X3 Triple-Core

AMD Phenom™ II X3 (95W)

AMD Business Class- AMD Phenom™ X4 Quad-Core Processors (95W)

AMD Athlon™

AMD Athlon™ FX (89W)

AMD Athlon™ X2 Dual-Core (95W)

AMD Business Class- AMD Athlon™ X2 Dual-Core Processors

AMD Business Class- AMD Athlon™ Processors

AMD Sempron™

Remark According to customer’s system thermal and acoustic level requirement, ThermalFly can depends on request to make customization model.
